This thoughtfully designed 3-bedroom house plan offers comfort, functionality, and modern living. It features a spacious master bedroom with an ensuite bathroom and walk-in closet, two additional bedrooms sharing a common toilet and bath, and an open, well-organized living layout. The design includes a kitchen with a dedicated pantry, a lounge and dining area ideal for family living, plus both a welcoming front entry porch and a convenient kitchen porch—perfect for practical, everyday use.
This well-planned 3-bedroom house design is created to offer comfort, functionality, and efficient use of space, making it ideal for modern family living. The layout has been carefully organized to balance private and shared areas while ensuring smooth circulation throughout the home.
Layout Design
The house plan features a spacious master bedroom with an ensuite bathroom and a walk-in closet, providing privacy and convenience. Bedrooms 1 and 2 are well-sized and share a common toilet and bathroom, making the design practical for family or guest use. The living spaces include a comfortable lounge connected to a dining area, creating an inviting environment for everyday living and entertaining. The kitchen is designed for efficiency and is complemented by a dedicated pantry for additional storage. The plan also includes a front entry porch that enhances the home’s curb appeal and a kitchen porch that adds functionality for service and outdoor access.
Elevations
The architectural plan includes all four external elevations—North, South, East, and West—clearly illustrating the building’s exterior appearance from every side. These elevations define the architectural character, finishes, roof form, openings, and overall proportions of the house.
Building Section (Cross-Section)
A detailed building section is provided to show the vertical relationship between spaces, including floor levels, wall heights, roof structure, and ceiling details. This section helps contractors and builders understand construction depths and structural alignment.
Door and Window Schedules
The plan set includes door and window schedules, specifying sizes of the windows and doors needed and their quantity. These schedules support accurate material estimation and ensure consistency during construction.

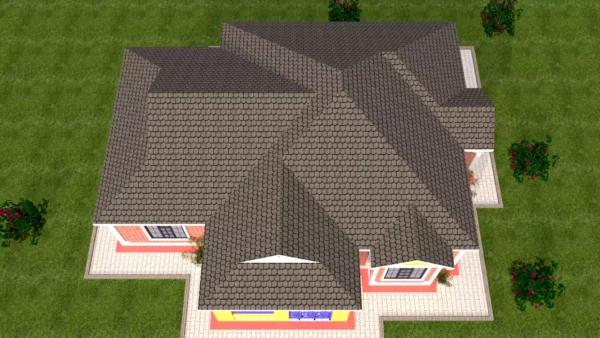

Roof Plan
A comprehensive roof plan is included, indicating roof layout, slopes, and drainage direction. This ensures proper roofing installation and water runoff management.
Drainage Connection
The drawings show the drainage connection layout, illustrating how wastewater and rainwater are directed from the building to the appropriate disposal or sewer system, supporting effective sanitation planning.
General Construction Details and client details
General construction details just give general information about the development. The client details section allows the clients to fill in their personal details on the plan such as their names, plot number and proposed location for development. This details show ownership.
