$35.00Original price was: $35.00.$30.00Current price is: $30.00.
This spacious 3-bedroom house plan is designed for comfortable and modern family living. It features a master bedroom with an ensuite bathroom and walk-in closet, a second ensuite bedroom, and a third bedroom served by a common toilet and bathroom. The home includes a well-planned kitchen with a pantry, a dedicated laundry area, a cloak room for guests, and open living spaces comprising a lounge and dining area. An entry porch and rear porch enhance accessibility and everyday convenience.
Master bedroom with ensuite bathroom and walk-in closet
Bedroom 1 with ensuite bathroom
Bedroom 2
Common toilet and bathroom
Cloak room
Lounge
Dining area
Kitchen with pantry
Laundry area
Entry porch
Rear porch
The arrangement promotes smooth circulation between rooms while maintaining privacy and maximizing usable space.
Elevations

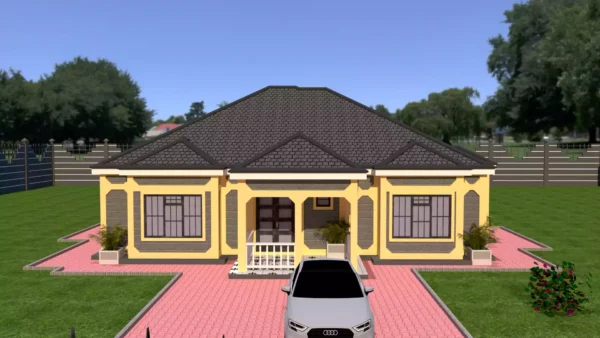

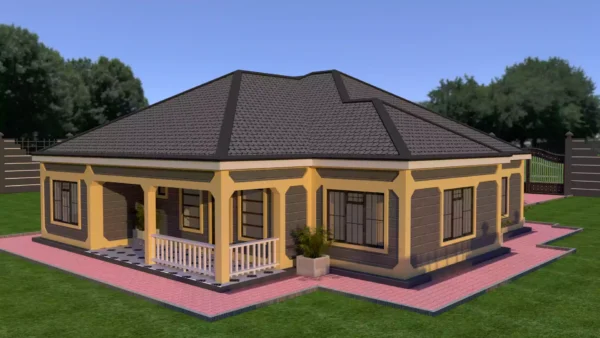

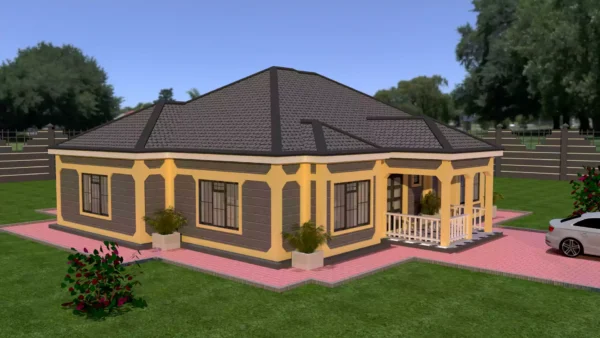

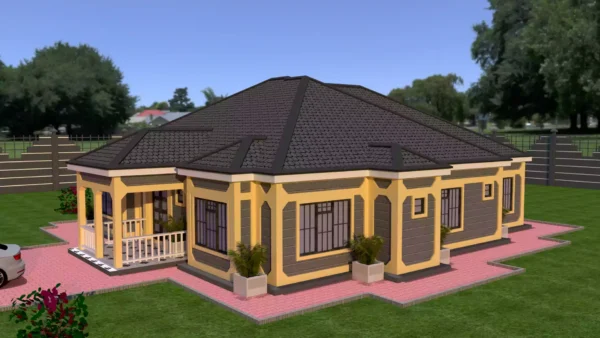

The drawing set includes North, South, East, and West elevations, clearly illustrating the external appearance of the house. These elevations highlight the hip roof form, wall finishes, window and door placements, and overall architectural proportions.
Building Section
A detailed building section (cross-section) is provided to show vertical construction details, including floor levels, wall heights, ceiling lines, and the hip roof structure. This section assists builders in understanding the relationship between structural elements.
Door and Window Schedules
The plan includes door and window schedules specifying sizes and number of doors and windows needed.
Roof Design (Hip Roof)

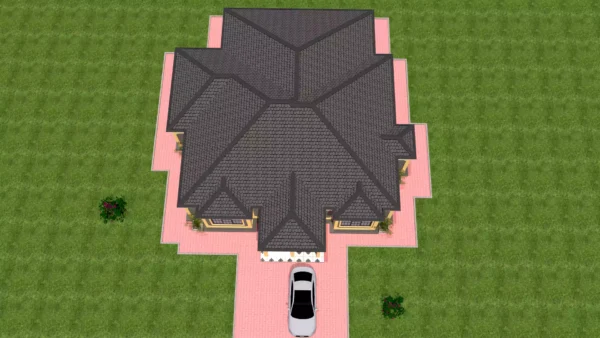

The hip roof design is clearly illustrated, showing slopes, ridges, and roof layout.
Septic Tank and Soak Pit Details
Included in the drawings are septic tank and soak pit details, providing a complete on-site wastewater management solution. These drawings guide proper sewage disposal and maintenance, especially in areas without access to a main sewer system.
General Construction Details
General construction details are provided to guide key building elements such as foundations, wall construction, and standard structural details, supporting smooth and accurate execution on site. The clients details such as the names and proposed location for development can be filled in the clients details section on the plan.
